Bearings, units and housings -- Plain bearings -- Spherical plain bearings and rod ends -- Rod ends with a female thread -- SKF SILQG 12 ESA

SILQG 12 ESA

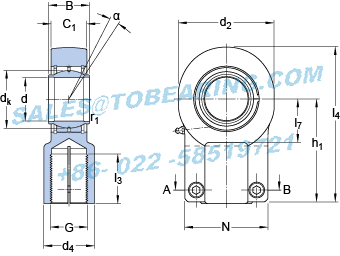

Dimensions

d		12	mm
d₂	max.	33	mm
B		12	mm
G	6H	M 12x1.25
C₁	max.	11	mm
h₁		38	mm
a		4	°
d_k		18	mm
d₄	≈	17	mm
l₃	min.	17	mm
l₄	max.	55	mm
l₇	min.	13	mm
N	max.	33	mm
N₁	max.	16	mm
r₁	min.	0.3	mm

Bolts with internal hexagon

Size bolt with internal hexagon			M 5
Tightening torque bolt with internal hexagon			5.5	N·m

Calculation data

Basic dynamic load rating	C	10.8	kN
Basic static load rating	C₀	22	kN
Specific dynamic load factor	K	100	N/mm²
Material constant	K_M	330

Mass

Mass rod end

0.11

Model Number: SILQG 12 ESA
Inner Diameter：12mm Outer Diameter：-mm Width：12mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Plain bearings Spherical plain bearings and rod ends Rod ends with a female thread
Details： Rod ends with a female thread
Update date：2026-08-18
Application:dye pigments,molding machine,Water Monitoring,forklift industry,Gear grinding machine,animal anatomy,Laser Measurements,Performance test,Perfusion device,Rolling mill gear box,Textile Industry Accessories and Accessories
Similar models:GS 81215 PSM 121612 A51 HE 3126 L GS 81236 71912 ACB/P4A C 3120 V 7012 CD/P4AL SAKAC 12 M IR 8x12x10.5 6012-RS1
BEARING POWER International Trading Co.,Ltd. specialize in SILQG12ESA products，there is large inventory of SKF SILQG 12 ESA Rod ends with a female thread. We has been built up long-term cooperation with SKF company, could make a bulk order of the SILQG 12 ESA Which SKF SILQG12ESA is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
