Bearings, units and housings -- Super-precision bearings -- Angular contact thrust ball bearings for screw drives -- Angular contact thrust ball bearings for screw drives, double direction, super-precision -- SKF BEAM 030080-2RZ

BEAM 030080-2RZ

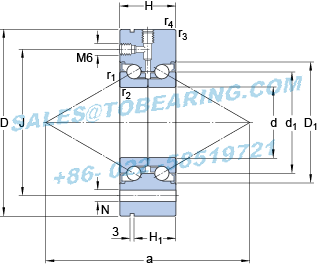

Dimensions

d		30	mm
D		80	mm
H		28	mm
d₁		45.5	mm
D₁		54	mm
H₁		19	mm
r_1,2	min.	0.3	mm
r_3,4	min.	0.6	mm
a		93	mm
J		63	mm
N		6.8	mm

Abutment dimensions

d_a	min.	40	mm
D_a	max.	54	mm
r_a	max.	0.6	mm

Calculation data

Basic dynamic load rating	C	29.1	kN
Basic static load rating	C₀	64	kN
Fatigue load limit	P_u	2.36	kN
Attainable speed		2600	r/min
Preload		2170	N
Frictional moment		0.25	N·m
Static axial stiffnes		870	N/µm

Mass

Mass bearing

0.78

Mounting information

Required attachment bolt size	M6
Number of attachment bolts	11
Pitch	30	°

Model Number: BEAM 030080-2RZ
Inner Diameter：30mm Outer Diameter：80mm Width：28mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Super-precision bearings Angular contact thrust ball bearings for screw drives Angular contact thrust ball bearings for screw drives, double direction, super-precision
Details： Angular contact thrust ball bearings for screw drives, double direction, super-precision
Update date：2026-06-25
Application:shoe-making machinery,tire industry,Hydraulic Couplings,coal,hydraulic control element,glass processing machine,woodworking machinery,chromatography,test equipment,air conditioning tools,paint paint
Similar models:BEAM 030080-2RZ
BEARING POWER International Trading Co.,Ltd. specialize in BEAM030080-2RZ products，there is large inventory of SKF BEAM 030080-2RZ Angular contact thrust ball bearings for screw drives, double direction, super-precision. We has been built up long-term cooperation with SKF company, could make a bulk order of the BEAM 030080-2RZ Which SKF BEAM030080-2RZ is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
