BMD-6206/064S2/UA108A

Dimensions

d		30	mm
D		62	mm
B₁		22.2	mm
B		16	mm
d₁	≈	40.36	mm
d₂		37.4	mm
D₁	≈	54.1	mm
D₂		58.1	mm
D₃		59.61	mm
C		3.28	mm
b		1.9	mm
r₀		0.6	mm
r_1,2	min.	1	mm

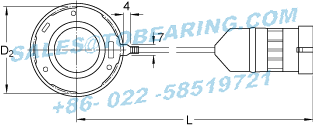

L		565	mm
	±	10	mm

Abutment dimensions

d_a	min.	35	mm
d_b	min.	35	mm
d_b	max.	40	mm
D_a	max.	57	mm
r_a	max.	1	mm

Sensor technology

Cable connector type			AMP Superseal
Number of pulses per revolution	N		64
Period accuracy		±	4	%
Phase shift output signal			90	°
Tolerance phase shift output signal		±	30	°

Calculation data

Basic dynamic load rating	C	19.5	kN
Basic static load rating	C₀	11.2	kN
Fatigue load limit	P_u	0.475	kN
Limiting speed		7500	r/min
Calculation factor	k_r	0.025
Calculation factor	f₀	14

Mass

Mass sensor unit

0.24

Appropriate products

Snap ring

SP 62

Model Number: BMD-6206/064S2/UA108A
Inner Diameter：30mm Outer Diameter：62mm Width：22.2mm
Reference speed:7500 r/min Limiting speed:-
Type：Bearings, units and housings Engineered products Sensor bearing units Motor encoder units
Details： Motor encoder units
Update date：2025-12-19
Application:clean stationery,electric pump,Garment Accessories,plastic molding,wall materials,teaching equipment,rolling machine,electronic materials,Industrial Electromechanical,electrocardiograph,baler
Similar models:BMD-6206/064S2/UA008A 6206-2Z/VA201 6206-2Z/VA208 6206 N W 6206 6206-RZ 6206-2ZNR 6206-2Z/VA228 BMD-6206/064S2/UA108A 6206-RS1
BEARING POWER International Trading Co.,Ltd. specialize in BMD-6206/064S2/UA108A products，there is large inventory of SKF BMD-6206/064S2/UA108A Motor encoder units. We has been built up long-term cooperation with SKF company, could make a bulk order of the BMD-6206/064S2/UA108A Which SKF BMD-6206/064S2/UA108A is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
