Bearings, units and housings -- Bearing housings -- Split plummer block housings, SNL and SE 2, 3, 5 and 6 series -- SNL and SE series for bearings on an adapter sleeve, with standard seals -- SKF SNL 517

SNL 517

Appropriate products

Bearing (basic designation)			C 2217 K
Adapter sleeve			HA 317 E
Locating ring			2 x FRB 12.5/150

Dimensions

d_a		74.612	mm
C_a		61	mm
D_a		150	mm
D_b		97.5	mm
A		125	mm
A₁		90	mm
H		183	mm
H₁		95	mm
H₂		32	mm
J		260	mm
L		320	mm
N		28	mm
N₁		22	mm

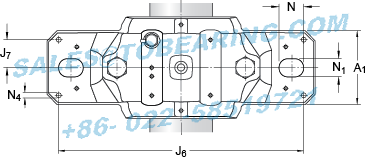

Dowel pins
J₆		292	mm
J₇		33	mm
N₄	max.	8	mm
Seal dimensions
A_2L		143	mm

Appropriate seals and end cover

TSN 517 C

TSN 517 L

TSN 517 A

2 x TSN 517 SA

ASNH 517

Breaking loads, housing

P_0°	370	kN
P_55°	480	kN
P_90°	290	kN
P_120°	205	kN
P_150°	190	kN
P_180°	240	kN
P_a	155	kN

Yield point, cap bolts

Q_120°	220	kN
Q_150°	125	kN
Q_180°	110	kN

Mass

Mass housing

Mounting information

Cap bolt, size		M 12x80
Cap bolt, rec. tightening torque		80	N·m
Appropriate attachment bolt, size	G	20	mm
Appropriate attachment bolt, rec. tightening torque		385	N·m
Initial grease fill, 20%		200	g
Initial grease fill, 40%		330	g

Model Number: SNL 517
Inner Diameter：74.6125mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing housings Split plummer block housings, SNL and SE 2, 3, 5 and 6 series SNL and SE series for bearings on an adapter sleeve, with standard seals
Details： SNL and SE series for bearings on an adapter sleeve, with standard seals
Update date：2026-06-24
Application:tire industry,air conditioning tools,reducer,chamfering machine etc,Film machine,storage and transportation equipment,walking Food processing machinery and equipment,floor industry,metallurgy,Industrial,wall industry
Similar models:FSAF 22517 TLC SAF 1517 x 2.7/8 TLC PCM 151720 E SAF 22517 TLC SSAFS 22517 x 2.13/16 PCM 151725 E SAFS 22517-11 SONL 217-517 FSAF 22517 T FSAF 22517
BEARING POWER International Trading Co.,Ltd. specialize in SNL517 products，there is large inventory of SKF SNL 517 SNL and SE series for bearings on an adapter sleeve, with standard seals. We has been built up long-term cooperation with SKF company, could make a bulk order of the SNL 517 Which SKF SNL517 is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
